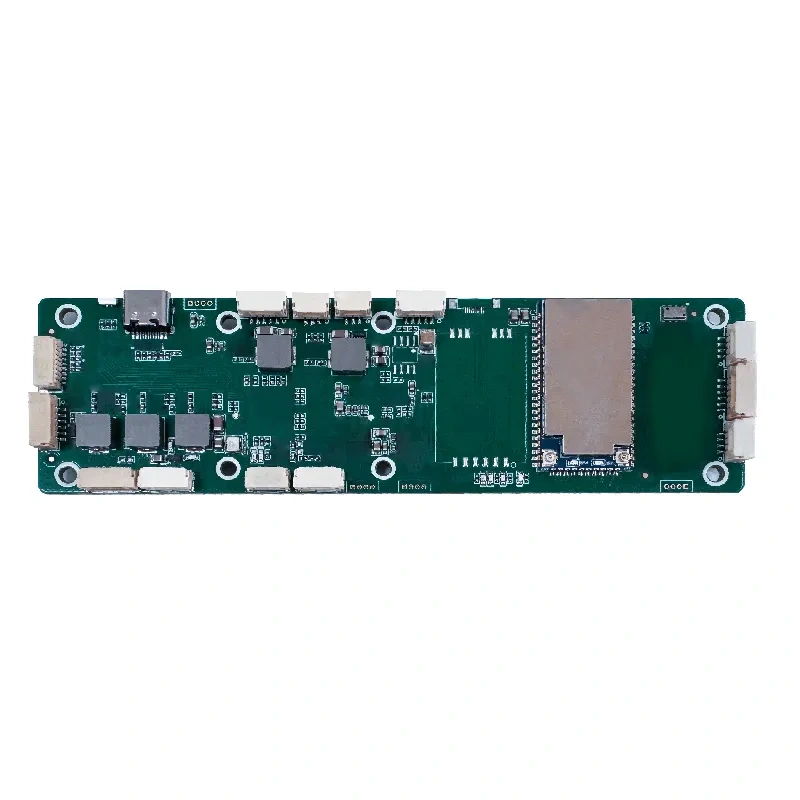

Intelligent Swarm Developer Kit
2 in 1 Flight Controller
The AxisNova Intelligent Swarm Developer Kit is a decentralised swarm control platform designed for scalable multi-drone operations. It enables a single operator to control multiple drones, with real-time reconfiguration of formations such as line-abreast, column, triangular, and encirclement.With no central control node, the system offers high anti-interference capability and survivability. If a drone is lost, the swarm automatically reorganises to maintain formation and ensure uninterrupted mission execution.
-
- Specification
| Dimensions |
139 mm × 41 mm × 7 mm |
| Weight |
45 g |
| Power |
4 W |
| Voltage |
VBAT: 11 V–28 V; USB: 5 V |
| Operating Temperature |
−40 °C to +80 °C |
| Storage Temperature |
−40 °C to +85 °C |
| Communication Frequency |
5.15–5.85 GHz |
| Communication Bandwidth |
10 MHz |
| Data Rate |
10 Mbps |
| Modulation |
OFDM |
| Transmit Power |
29 dBm |
| Receiver Sensitivity |
96 dBm @ 10 Mbps |
| Networking Mode |
Mesh networking, supprting up to 3 drones |
| Single-hop Transmission Latency |
60 ms |
| Interference Recovery Time |
500 ms |
| Standard Communication Range |
6 km |

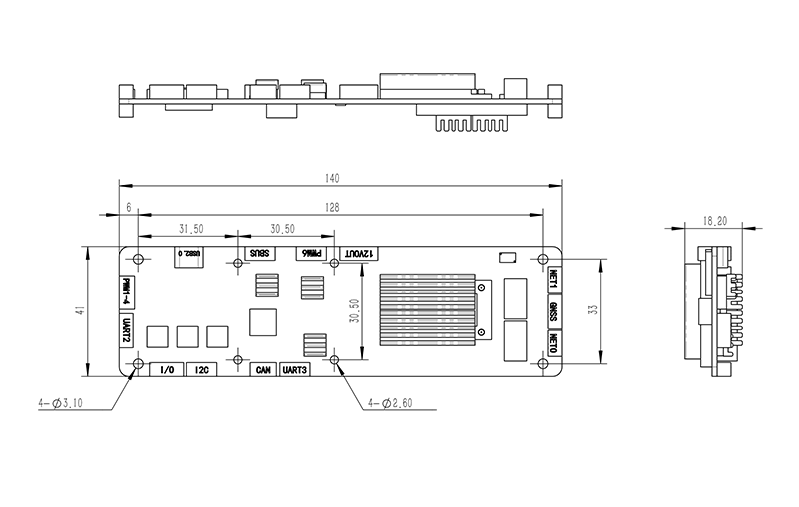

- Dimensions
